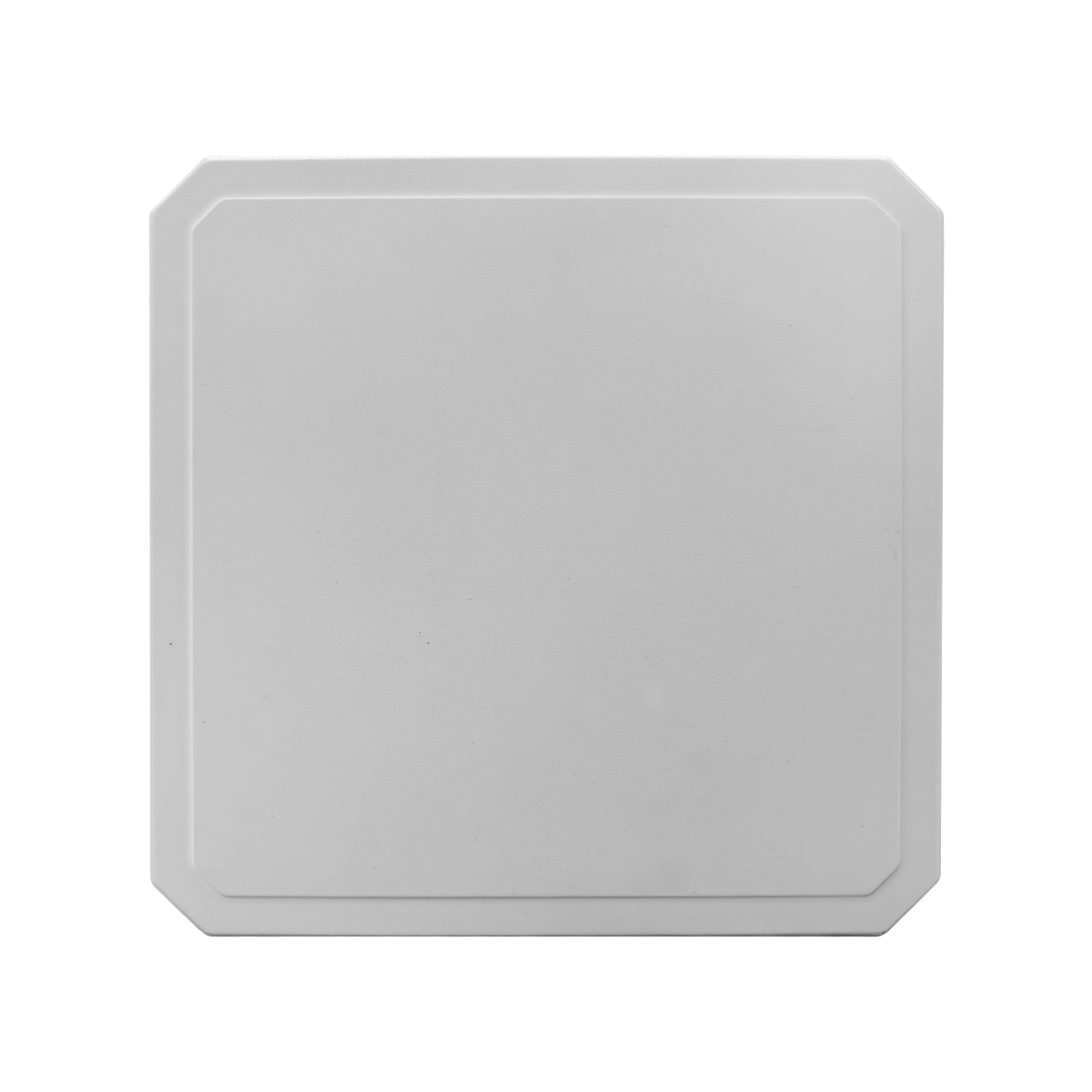

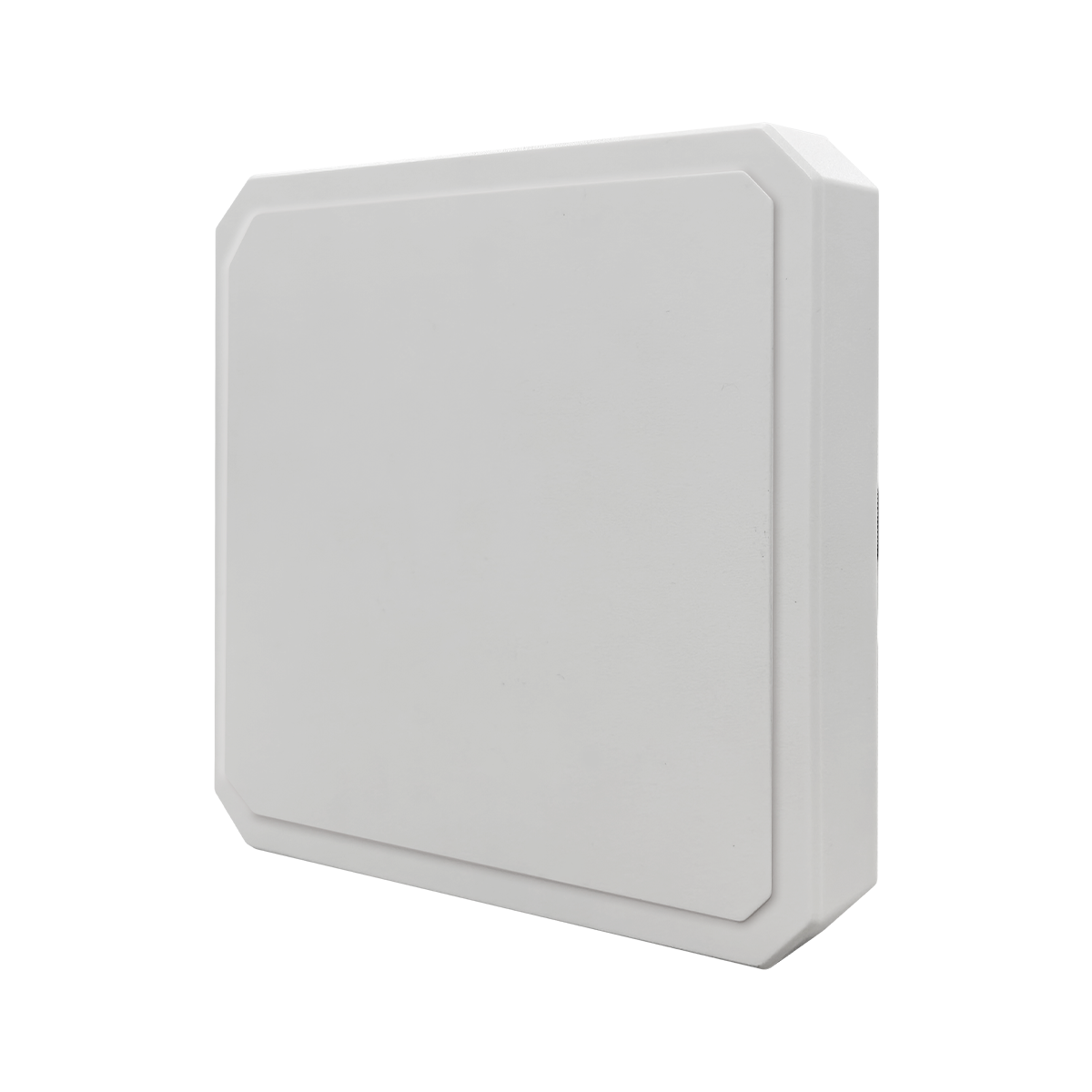

7C165 UHF (Ultra High Frequency) antenna
- strong, directed signal
- Ideal for areas with weak signals, fringe reception, or where high-gain (strong amplification)
- Electrical SpecificationsFrequency Range: US 902–928 MHz, EU 865–868 MHz
Polarization: Circular Polarization
Gain: US ≥6.5 dBi, EU ≥5 dBi
Horizontal Beamwidth: 72°
Vertical Beamwidth: 78°
VSWR: ≤1.7
Axial Ratio: <3 dB
Impedance: 50 Ω
Mechanical Specifications
Connector: N-type (male, external thread, internal hole)
Dimensions: 164 × 164 × 20 mm
Weight: 275 g
Radome Material: ABS
Radome Color: Ivory White
Radiator Material: Aluminum
Operating Temperature: -40°C ~ +85°C
Ingress Protection: IP65

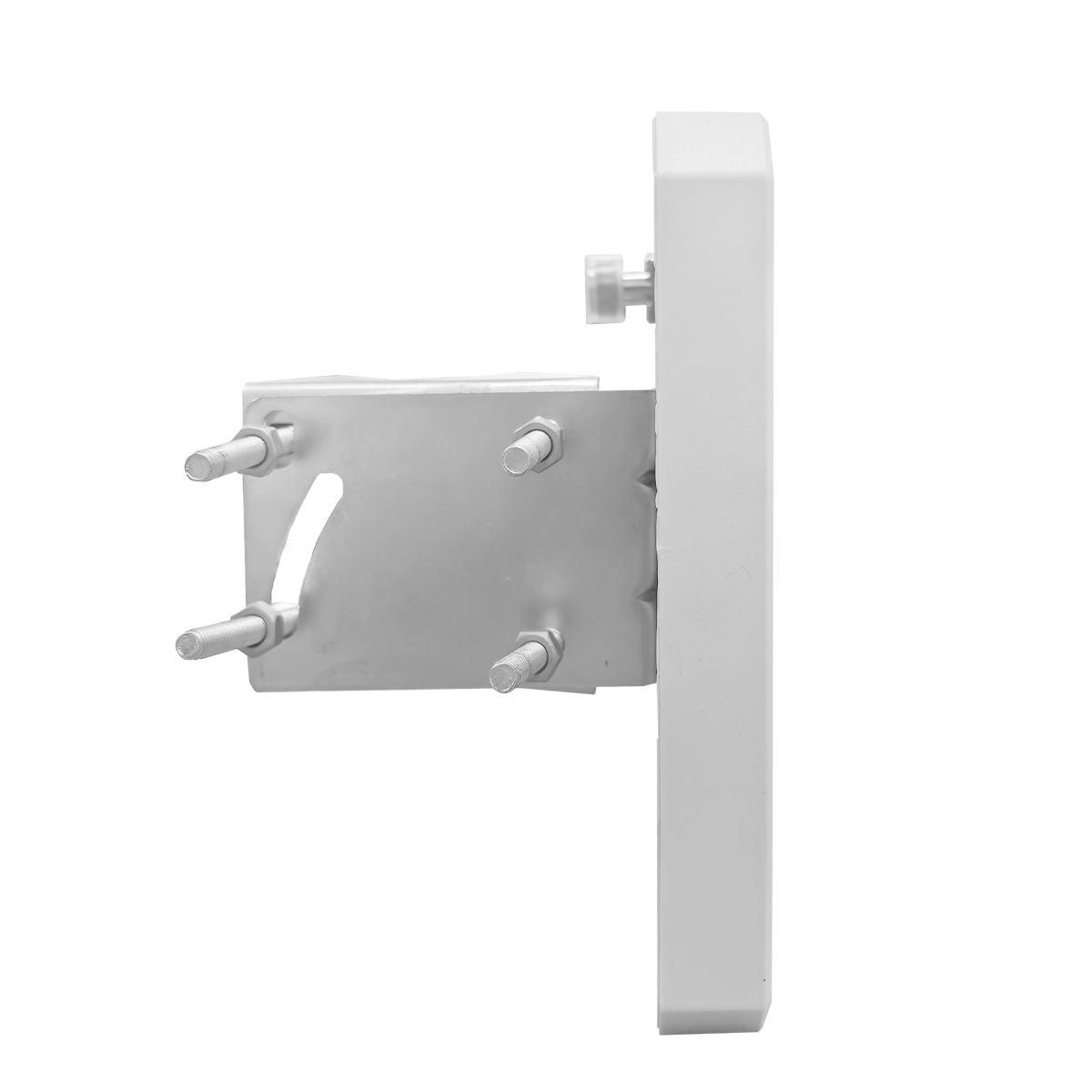

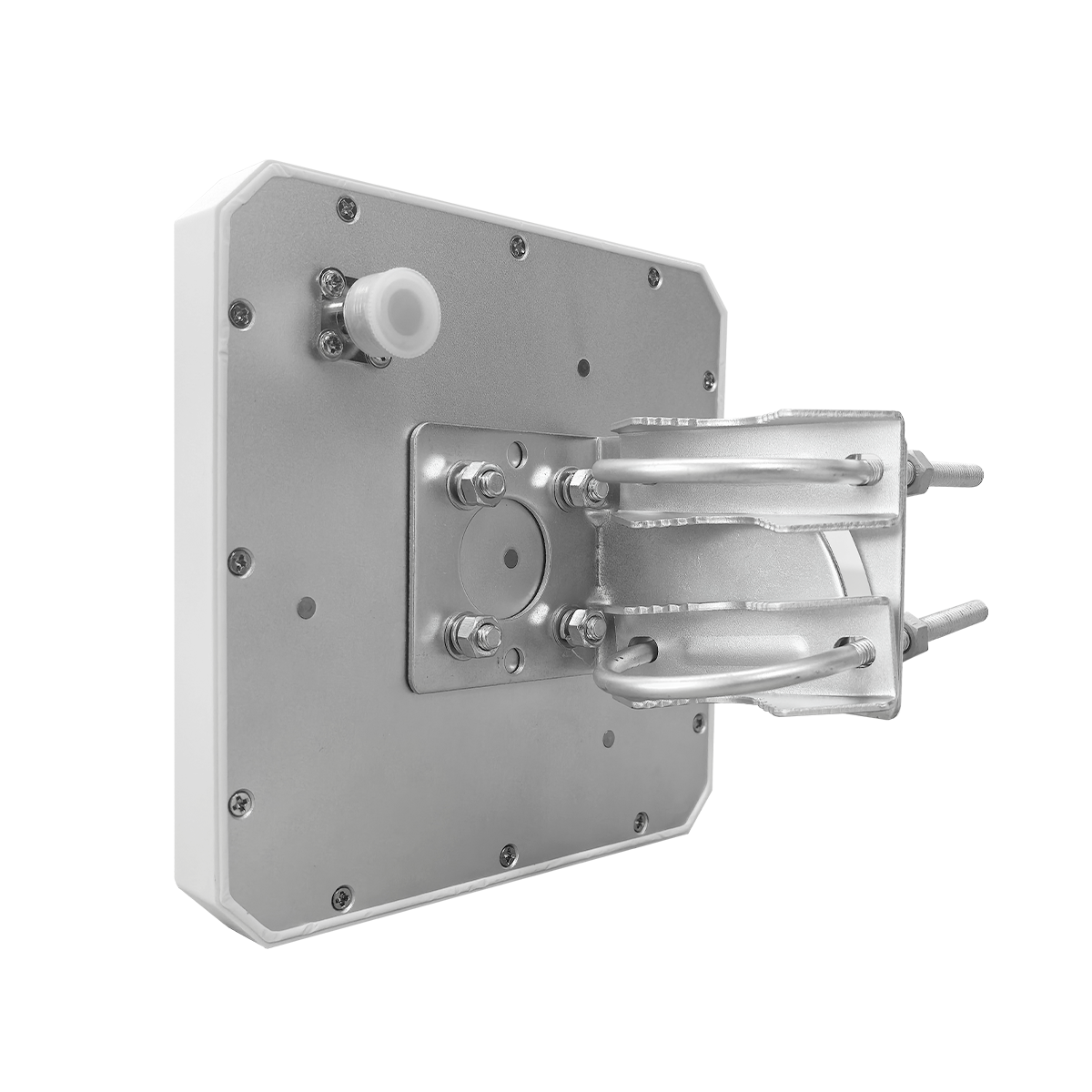

Mounting: Pole Mount
